INDIROPE - 629F+FC 6x29F (14-7F-7-1)
Bharat Wire Ropes Ltd. comprehensively caters to the various needs of the oil and gas sector with its wide range of wire rope product offerings. Our high quality wire ropes are characterized by high strength, and are used in onshore/offshore exploration drilling rigs, land-based exploration drilling rigs, and oil & gas well servicing amongst others.Bharat Wire Ropes Ltd. manufactures a wide range of elevator wire ropes, governor ropes and hoist ropes that exhibit outstanding flexibility and grip characteristics. Our ropes are rigorously tested for quality at our in-house testing centers to ensure that they adhere to global standards.
Advantages
SPECIFICATIONS (USP)
High quality flexible and elastic
Consistent Performance
Lubricated in Manufacturing
Features
- AVAILABLE IN
- RHO (Right hand ordinary lay)
- LHO (Left hand ordinary lay)
- RHL (Right hand Langs lay)
- LHL (Left hand Langs lay)

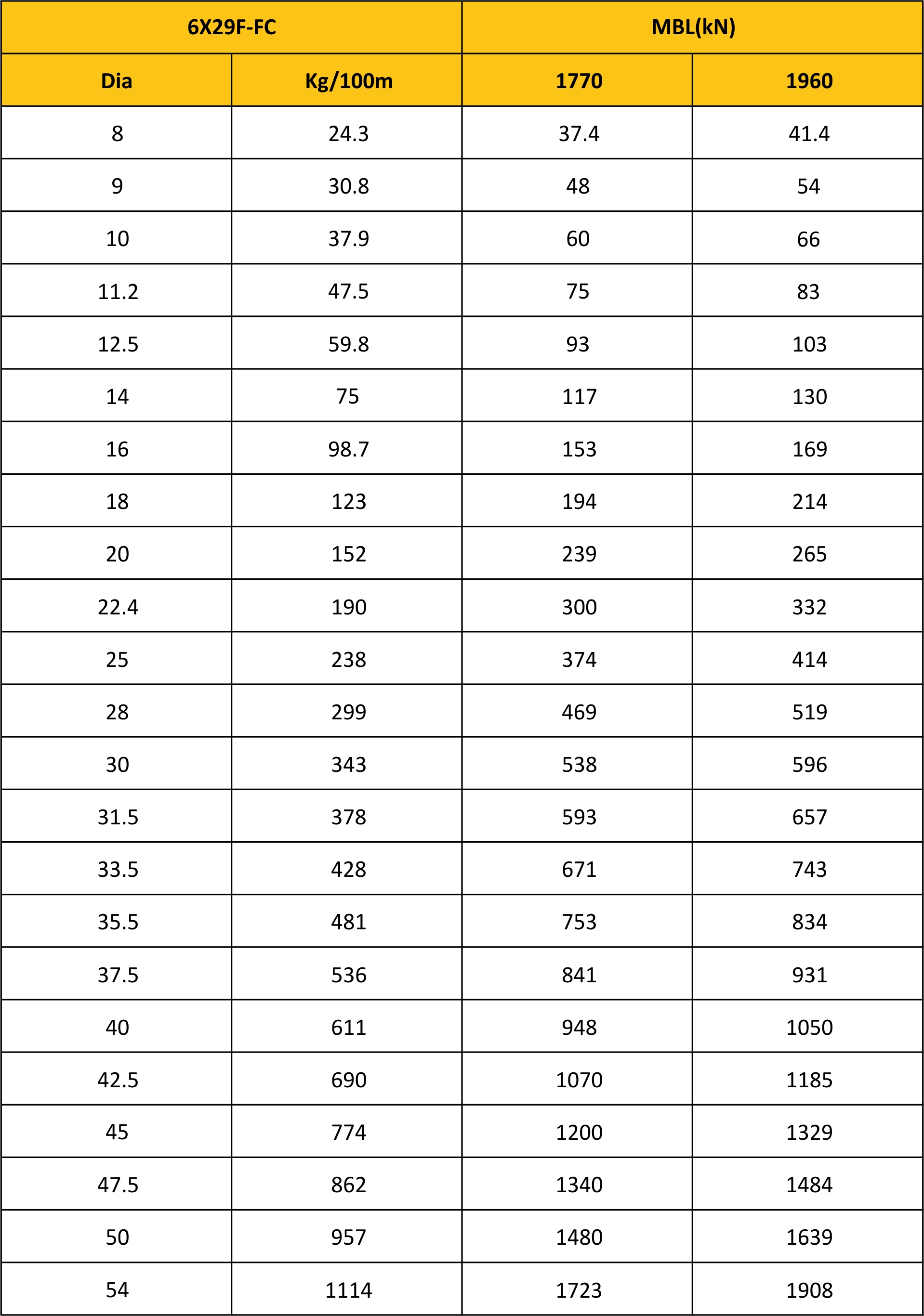

MBL Data Sheet
| Nominal Diameter | Approximate Mass | Minimum Breaking Force | ||
|---|---|---|---|---|
| IP/1770 grade | EIP/1960 grade | EEIP/2160 grade | ||
| mm | Fibre core (FC) | Fibre core (FC) | Fibre core (FC) | Fibre core (FC) |
| mm | Kg/100m | kN | kN | kN |
| 8 | 24.3 | 37 | 41 | 46 |
| 9 | 30.8 | 47 | 52 | 58 |
| 10 | 38 | 58 | 65 | 71 |
| 11 | 46 | 71 | 78 | 86 |
| 12 | 54.7 | 84 | 93 | 103 |
| 13 | 64.3 | 99 | 109 | 120 |
| 14 | 74.5 | 114 | 127 | 140 |
| 16 | 97.3 | 149 | 166 | 182 |
| 18 | 123 | 189 | 209 | 231 |
| 19 | 137 | 211 | 233 | 257 |
| 20 | 152 | 234 | 259 | 285 |
| 22 | 184 | 283 | 313 | 345 |
| 24 | 219 | 336 | 372 | 410 |
| 26 | 257 | 395 | 437 | 482 |
| 28 | 298 | 458 | 507 | 559 |
| 30 | 342 | 525 | 582 | 641 |
| 32 | 389 | 598 | 662 | 730 |
| 34 | 439 | 675 | 747 | 824 |
| 36 | 493 | 757 | 838 | 924 |
| 38 | 549 | 843 | 934 | 1029 |
| 40 | 608 | 934 | 1035 | 1140 |
| 44 | 736 | 1130 | 1252 | 1380 |
| 46 | 804 | 1235 | 1368 | 1508 |
| 48 | 876 | 1345 | 1490 | 1642 |
| 52 | 1028 | 1579 | 1748 | 1927 |
| 56 | 1192 | 1831 | 2028 | 2235 |
| 60 | 1369 | 2102 | 2328 | 2565 |
| 64 | 1557 | 2392 | 2648 | 2919 |
| 68 | 1758 | 2700 | 2990 | 3295 |
| 70 | 1863 | 2861 | 3168 | 3492 |
| 72 | 1971 | 3027 | 3352 | 3694 |
| 76 | 2196 | 3373 | 3735 | 4116 |
| 78 | 2313 | 3553 | 3934 | 4335 |
| 80 | 2433 | 3737 | 4138 | 4561 |
| 84 | 2683 | 4120 | 4562 | 5028 |
| 86 | 2812 | 4319 | 4782 | 5270 |
| 88 | 2944 | 4522 | 5007 | 5518 |
| 90 | 3080 | 4730 | 5237 | 5772 |
| NOTE:- Rope sizes not shown in the table may be available and details can be furnished on query/request. | ||||
